If you’re involved in horizontal directional drilling (HDD), understanding the PDC hole opener for HDD is a game-changer for your project’s efficiency and success. This tool isn’t just any drill bit—it’s designed to optimize penetration rates, extend tool life, and improve hole cleaning through smart fluid circulation. Whether you’re comparing it to roller cone hole openers or PDC reamers, knowing the role, design, and best applications of a PDC hole opener can dramatically affect your drilling performance in soft to medium-hard formations. Ready to unlock how this powerful tool can upgrade your HDD operations? Let’s dive in.

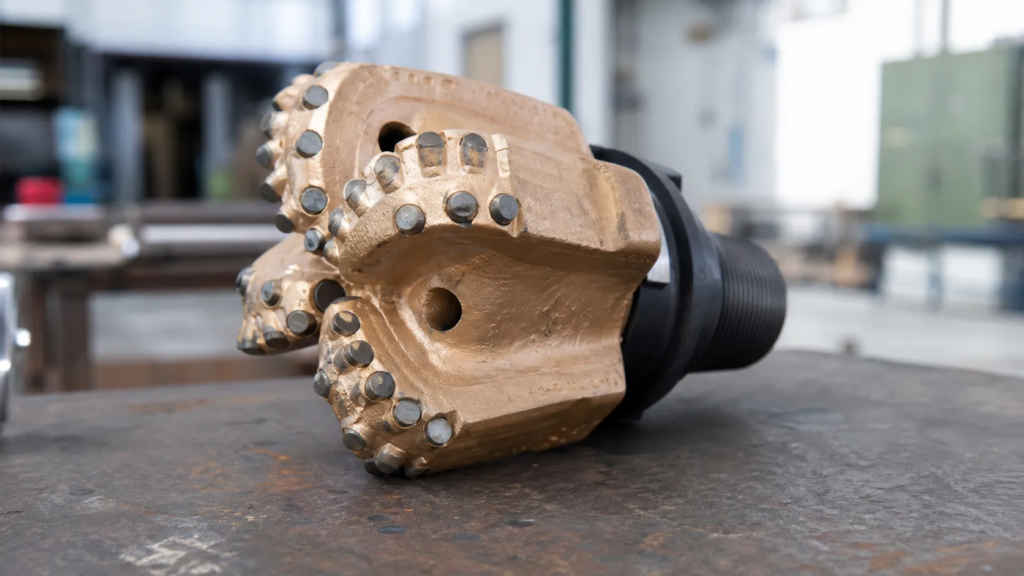

What is a PDC Hole Opener for HDD?
Definition and Working Principle
A PDC hole opener for HDD (Horizontal Directional Drilling) is a specialized drilling tool designed to enlarge pilot holes using Polycrystalline Diamond Compact (PDC) cutters. It features a steel body equipped with strategically arranged PDC cutters that effectively shear and grind various soil and rock formations. The tool works by rotating at controlled speeds and applying weight on bit as it breaks through the ground, expanding the borehole diameter beyond the initial pilot trajectory. This enables smooth passage of larger casing or pipelines.
Role in Horizontal Directional Drilling (HDD)
In HDD projects, the PDC hole opener plays a critical role in hole enlargement or reaming after the pilot hole is drilled. Its robust construction and wear-resistant cutters ensure efficient and consistent hole expansion through challenging subsurface conditions common in utility installations, pipeline crossings, and municipal infrastructure. By optimizing drilling efficiency and penetration rates, the PDC hole opener minimizes operational time and drilling costs, supporting safe, reliable trenchless construction methods.
Key Features and Advantages of PDC Hole Openers
High Penetration Rate and Drilling Efficiency
PDC hole openers deliver superior drilling speed thanks to their rugged polycrystalline diamond compact (PDC) cutters designed for fast rock and soil penetration. Their optimized cutter layout maximizes the rate of penetration (ROP), reducing overall drilling time. This efficiency is crucial for horizontal directional drilling (HDD) where project timelines matter. With consistent cutting force and low vibration, these openers maintain steady progress in varying ground conditions.
Durable Cutting Structure and Extended Tool Life
Built with steel body designs—such as overlay welded or standard steel construction—PDC hole openers are tough enough to withstand abrasive formations and extended use. The GT series PDC cutters offer outstanding wear resistance, significantly prolonging tool life compared to traditional bits. This durability lowers the need for frequent replacements, minimizing downtime and cutting procurement costs. The robust cutting assemblies maintain sharpness and structural integrity over multiple drill cycles.
Optimized Fluid Circulation for Better Hole Cleaning
Efficient fluid flow through strategic nozzle placement enhances cuttings removal and hole cleaning during operation. This optimized fluid circulation prevents bit balling and clogging, especially in sticky or soft clays common in HDD projects. Maintaining a clean borehole reduces torque spikes and improves drilling efficiency and tool performance. Enhanced fluid dynamics also support better cooling of cutters, preserving their lifespan and cutting effectiveness.
For tailored cutter layouts and top-tier PDC trenchless hole reamers engineered for maximum wear resistance and high ROP, explore our PDC Trenchless Hole Reamer high ROP options.
PDC Hole Opener vs. Alternative HDD Drilling Tools

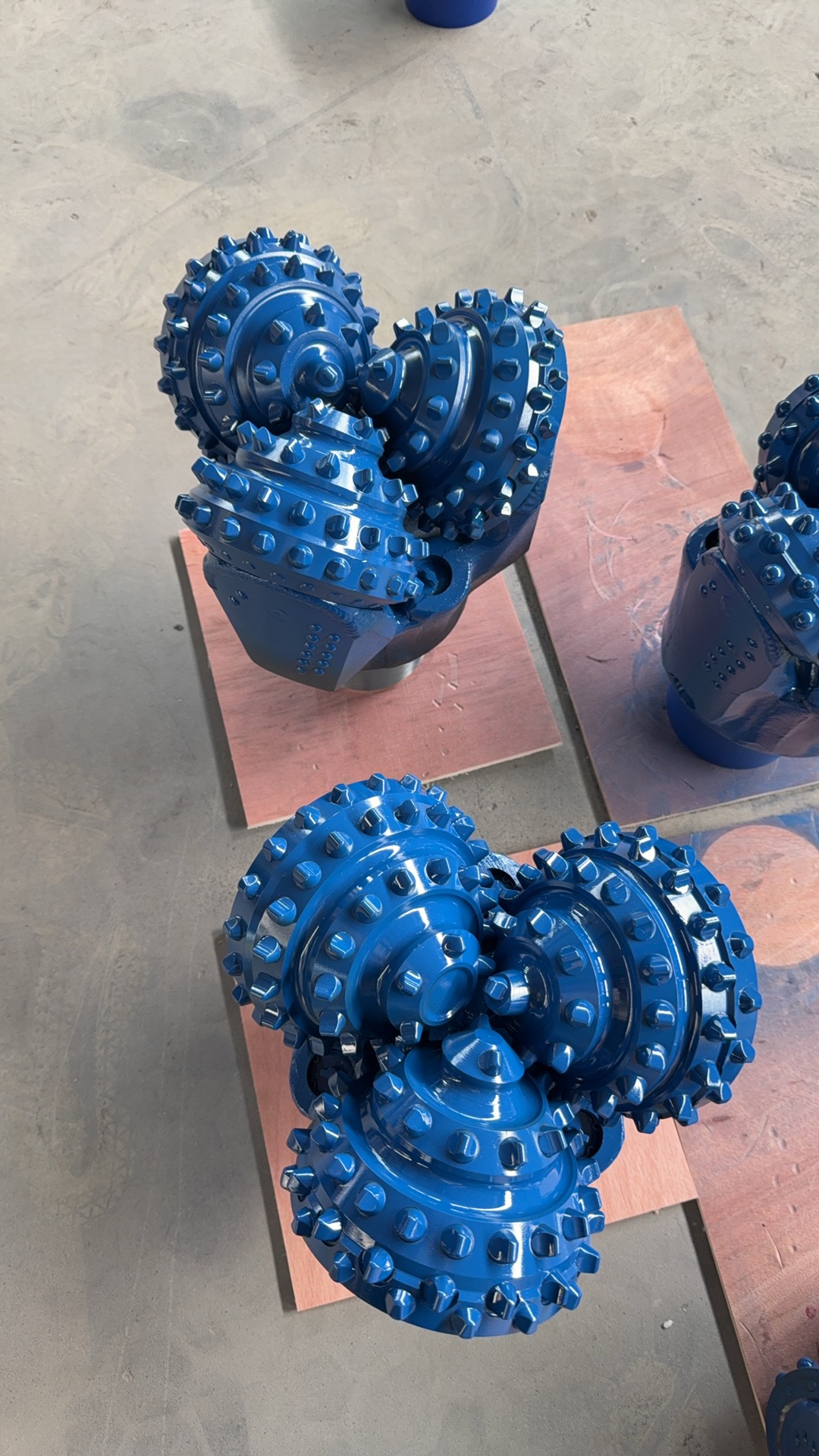

PDC Hole Opener vs. Roller Cone Hole Opener
PDC hole openers use fixed diamond cutters that shear rock with precision, while roller cone hole openers rely on rotating cones that crush and grind the formation. This fundamental difference shapes their performance:
| Feature | PDC Hole Opener | Roller Cone Hole Opener |
|---|---|---|
| Cutting Action | Shearing with polycrystalline diamond cutters (PDC) | Crushing and chipping with rotating cones |
| Best for | Abrasive, hard, and interbedded formations | Very hard, fractured, and abrasive rock |
| Durability | High wear resistance, longer tool life | Susceptible to cone wear and bearing failure |
| Rate of Penetration (ROP) | Typically faster due to shearing action | Generally slower, better for highly fractured formations |
| Maintenance | Easier cutter replacement and refurbishment | More complex due to cone and bearing components |
PDC hole openers excel in maintaining high penetration speed with lower downtime. Roller cone openers remain valuable for extremely hard or broken rock where shearing is less effective. For a heavy-duty option in tough rock, CZDRILL’s roller cone hole openers offer durable solutions tailored to those conditions.
PDC Hole Opener vs. PDC Reamer
Both tools use PDC cutters but serve different drilling stages:
| Aspect | PDC Hole Opener | PDC Reamer |
|---|---|---|
| Primary Function | Enlarges pilot hole during HDD installation | Cleans and smooths borehole after pilot drill |
| Cutter Layout | Heavier cutter density for aggressive cutting | More spaced cutters for hole cleaning and finishing |
| Application Stage | Hole opening / enlargement | Hole conditioning / reaming |
| Durability & Wear | Designed for high abrasion and impact | Optimized for steady wear and cleaning |
| Customization | Customized cutter patterns for specific formations | Custom cutter sizes for hole quality improvement |
Selecting the right PDC hole opener or reamer depends on drilling objectives. CZDRILL provides both options, including heavy-duty trenchless reamers to complement hole openers in the HDD workflow.
Key Differences in Cutting Action and Suitable Formations
- Cutting Action: PDC hole openers excel by shearing through rock with durable diamond cutters, delivering high penetration rates. Roller cones crush and chip, ideal for crumbly or fractured rock. PDC reamers focus on smoothing and cleaning with less aggressive cutting.
- Formation Suitability:
- PDC Hole Opener: Soft to medium-hard shales, clays, abrasive sandstones.
- Roller Cone: Very hard limestone, dolomite, and broken formations.
- PDC Reamer: Completion of pilot hole cleaning in various formations.
Understanding these differences allows drilling engineers to optimize tool selection for cost-efficient, high-performance HDD projects. For detailed cutter wear technology behind these tools, CZDRILL’s resource on premium PDC bits offers in-depth insights.
Technical Specifications and Design Features
Body Structure and Cutter Layout Configuration
PDC hole openers for HDD feature durable steel bodies, often with overlay welding for enhanced toughness and wear resistance. The cutter layout is carefully engineered to maximize drilling efficiency in varied soil and rock formations. Using premium GT series cutters, the arrangement balances aggressive cutting action with optimized fluid flow to ensure effective debris clearance and cooler cutter operation.
| Feature | Description |
|---|---|
| Body Material | Steel (standard or overlay welded) |
| Cutter Layout | Customized GT series cutter configurations |
| Design Focus | Enhanced durability, fluid circulation, ROP |
PDC Cutter Sizes and Quality Grades
Cutter sizes vary to suit specific hole diameter requirements and formation hardness. High-quality PDC cutters are sourced and precision-machined to meet API and ISO standards for toughness and wear resistance. The GT series cutters offer superior impact tolerance and abrasion resistance, extending service life and minimizing cutter replacement frequency.
| Cutter Size Range | Quality Grade | Application Focus |
|---|---|---|
| Small to Large (varies) | Premium API/ISO Grade | Soft to medium hard formations |
Thread Connections and Pilot Size Specifications
Thread connections on PDC hole openers are standardized to ensure compatibility with common HDD drill rods and rigs. The pilot hole size is matched carefully to the hole opener diameter to facilitate smooth reaming and reduce torque issues during drilling. Configurations can be tailored to project requirements, ensuring optimal fit and reliable field performance.
| Specification | Details |
|---|---|
| Thread Type | API standard threaded connections |
| Pilot Hole Diameter | Customized to match target hole opener size |
| Compatibility | Designed for typical HDD drill rig interfaces |
This precise combination of robust body structures, premium cutter layouts, and adaptable thread and pilot sizes ensures CZDRILL’s PDC hole openers deliver exceptional drilling performance with high durability and operational flexibility. For further insights on high-performance cutter technology, see our detailed TCI cone bit cutter options.
Applications and Ground Condition Suitability
Soft to Medium-Hard Rock Formations
PDC hole openers for HDD are engineered to excel in soft to medium-hard rock environments, providing efficient hole enlargement with high penetration rates. Their robust steel body and precision cutter layouts make them reliable when working through formations like limestone and shale, minimizing wear while maintaining steady progress.
Shale, Clay, and Abrasive Sandstone Applications
These hole openers handle sticky shale, soft clays, and abrasive sandstone effectively by combining durable PDC cutters with optimized fluid circulation. This design reduces clogging and cutter degradation, ensuring consistent performance in challenging abrasive and adhesive soils common in many HDD projects.
Utility, Pipeline, and River Crossing Projects
Ideal for utility installation, pipeline routing, and river crossing applications, PDC hole openers deliver precise, clean holes with minimal downtime. Their adaptability to diverse ground conditions makes them trusted tools for trenchless drilling contractors focused on infrastructure projects that demand reliability and accuracy.
For specialized drilling needs and equipment sourcing, our full-service support and direct factory supply can be explored at Cangzhou Chaozuan’s sourcing guide.
How to Select the Right PDC Hole Opener for HDD Projects
Matching Tool Size with Pilot Hole and Target Diameter
Choosing the correct PDC hole opener starts with matching the tool size to your existing pilot hole and the desired final bore diameter. The hole opener must be sized to enlarge the pilot hole efficiently without causing unnecessary stress on the drilling assembly. Oversized openers can increase torque and wear, while undersized tools reduce drilling efficiency. Precision-engineered options with customizable cutter layouts ensure you get the perfect fit for every job. For tailored solutions that meet exact hole size requirements, exploring specialized product offerings and custom designs can optimize your HDD operation’s performance.
Evaluating Formation Hardness and Abrasiveness
Understanding the geology of your drilling site is critical to selecting a PDC hole opener. Softer formations like clay or soft shale demand different cutter configurations than abrasive sandstone or medium-hard rock. Choose cutters and body materials engineered to withstand wear for the specific ground conditions to prevent premature failure. High-quality PDC cutters designed for durability and sharpness will perform better in abrasive environments, while more aggressive cutter layouts are suitable for sticky or soft formations. Evaluating the formation’s hardness and abrasiveness directly influences tool lifespan and drilling speed.
Factoring in Drilling Rig Capacity and Torque
The capabilities of your drilling rig dictate the upper limits for hole opener size and cutter aggressiveness. Heavy-duty rigs with higher torque ratings can handle larger diameter openers and more robust cutters, enabling faster hole enlargement. Conversely, smaller rigs require efficient cutter layouts that minimize torque and prevent excessive motor strain. Matching the hole opener design to rig capacity ensures smooth operation, reduces downtime, and protects both the tool and drilling equipment. Factory-direct supply of customized hole openers helps align tool specs with your rigs’ exact torque and power capabilities, streamlining your HDD projects efficiently.
For comprehensive options and custom engineering that optimize your PDC hole opener choice, consider reviewing detailed product selections and maintenance solutions available from expert manufacturers. Their coated steel bodies and tailored cutter setups meet a wide range of formation challenges while maximizing drilling efficiency. Explore high-performance PDC hole openers and reamers designed for trenchless HDD operations. For tip replacement and tool upkeep, reliable maintenance and cutter replacement services extend tool life and reduce operational costs.
Best Practices for Operating and Maintaining PDC Hole Openers
Pre-Operation Inspection and Rig Setup
Before starting any drilling operation, thoroughly inspect the PDC hole opener for any visible damage, loose cutters, or wear. Confirm that the cutter layout matches the geological conditions and project requirements. Ensure all thread connections are clean and properly tightened to avoid tool failure. Setup the drilling rig with correct alignment, stable positioning, and verify that the pilot bit and hole opener are compatible in size and thread type. Proper rig calibration prevents unnecessary stress on the tool and improves hole quality.
Controlling Drilling Parameters (RPM, Torque, Mud Flow)
Managing drilling parameters is critical for optimal performance and tool longevity:
| Parameter | Recommended Range | Purpose |
|---|---|---|
| RPM | Moderate, adjusted to formation | Controls bit speed and wear rate |
| Torque | Within rig and tool limits | Prevents cutter damage and stalls |
| Mud Flow Rate | Sufficient for cuttings removal | Keeps hole clean and cools cutters |
Adjust RPM and torque based on formation hardness and abrasiveness. Excessive RPM can increase wear, while inadequate mud flow leads to poor hole cleaning and overheating. Optimize mud properties for your specific HDD project to maintain cutter efficiency and reduce downtime.
Post-Operation Maintenance and Cutter Inspection
After completing drilling, immediately clean the PDC hole opener to remove debris and mud residue. Perform a detailed inspection focusing on:
- PDC cutter integrity (look for chips, cracks, or flattening)
- Cutter retention and tightness
- Body wear or damage to welded steel surfaces
Replace worn or damaged cutters promptly to restore drilling performance and extend the tool’s service life. Reconditioning and cutter replacement play a critical role in maintaining cost-effective operations, ensuring your PDC hole opener delivers consistent penetration rates and avoids premature failures over multiple drilling cycles. For reliable repair and refurbishment techniques, consider referencing trusted manufacturing standards like those described in precision OEM solutions for drilling tools.
