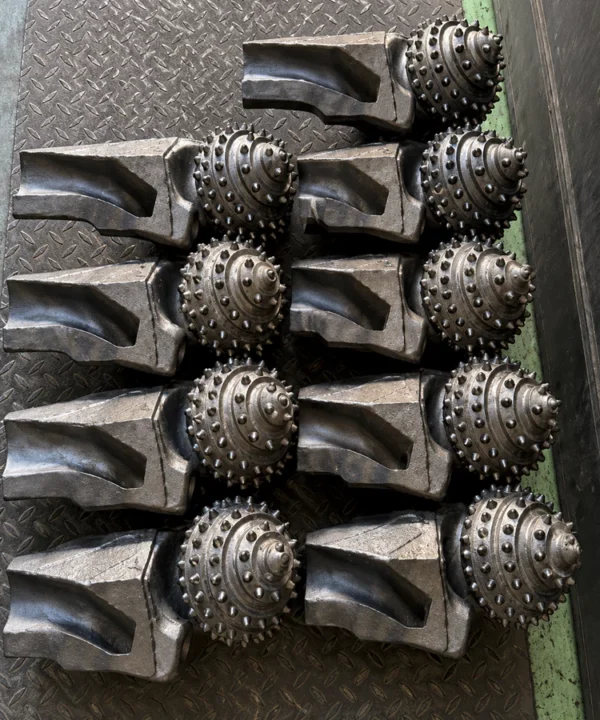

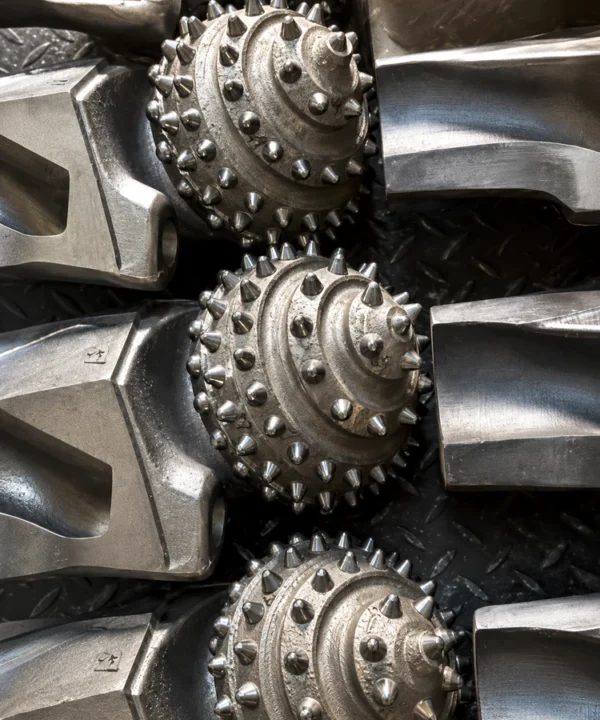

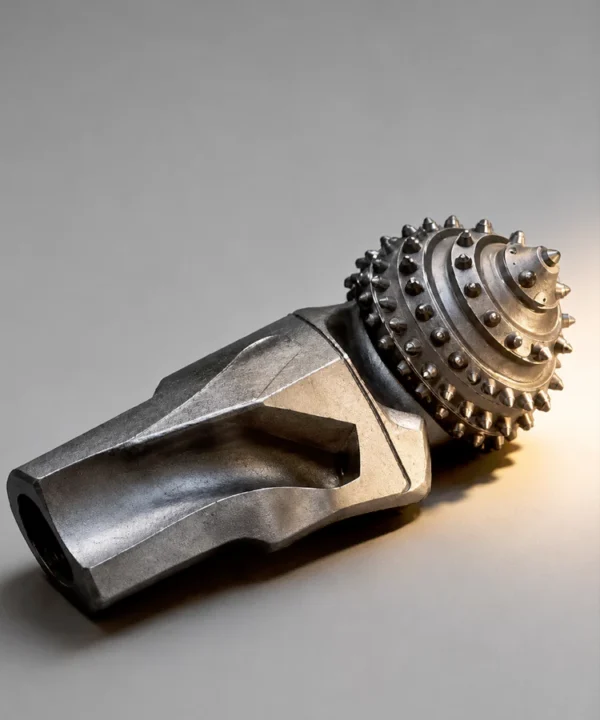

High-Toughness TCI Cone Bit Cutter537
The Cone Bit Cutter GT 537 is an API-standard, heavy-duty TCI segment engineered for reaming and hole enlargement in medium-hard formations with high compressive strength, such as hard shale, limestone, and sandstone. Featuring high-toughness tungsten carbide inserts in an optimized layout, it delivers aggressive rock-crushing action. The assembly integrates an advanced sliding bearing system with a silver-plated roller bore, a high-temperature floating nitrile rubber seal, and a pressure-compensated oil bladder to prevent mud intrusion and bearing seizure. Equipped with full gauge protection inserts and leg back hardfacing to eliminate hole shrinkage, the GT 537 offers exceptional durability and a highly rebuildable design, allowing B2B drilling contractors to cost-effectively refurbish custom reamers.
High-Toughness TCI Cone Bit Cutter for Large-Diameter Hole Openers and Reamers
Product Overview & Description
The Cone Bit Cutter GT 537 is a premium, heavy-duty single-cone assembly engineered engineered for integration into large-diameter tricone reamers, non-dig foundation hole openers, and multi-cone trenchless boring tools. Forged from high-grade alloy steel and embedded with high-toughness tungsten carbide inserts (TCI), this replacement cutter is purpose-built to convert massive rotational torque into destructive rock-crushing power.
Designed in strict compliance with global API standards, the GT 537 features an elite sliding bearing system, a silver-plated roller bore, and an advanced floating seal mechanism. It serves as the cornerstone of CZDRILL’s B2B refurbishment and custom reamer program, allowing international infrastructure and piling contractors to replace worn cone segments rather than investing in entirely new reamer bodies, saving substantial procurement overhead.
Features & Outstanding Advantages
-
Premium Sliding Bearing & Anti-Seizure Protection: Incorporates an advanced sliding bearing system paired with heavy-duty leg hardfacing and a silver-plated roller bore, drastically increasing maximum radial load capacity and preventing seizure under high-temperature downhole rotations.
-
Advanced Floating Nitrile Seal: Equipped with a high-temperature floating nitrile rubber seal and a pressure-compensated oil bladder to completely block abrasive drilling mud while ensuring continuous, stable bearing lubrication.
-
Dual-Layer Gauge Defense: Built with full gauge protection inserts and rugged leg back hardfacing to actively maintain strict borehole diameters, reliably preventing hole shrinkage during multi-stage reaming.
-
Optimized IADC 537 Rock Breaking: High-toughness tungsten carbide inserts are positioned in an optimized tooth layout to provide exceptional anti-wear and aggressive chipping performance in tough, consolidated formations.
-
High B2B Refurbishment Value: Perfectly standardized for quick cutting, welding, and rebuilding workflows, maximizing the cycle-life of your independent reamer bodies.
Application Scope
The GT 537 is specifically designed for crushing medium-hard formations with high compressive strength and abrasive properties:
-
Target Strata: Hard shale, dense limestone, cemented sandstone, and dolomite interbeds.
-
Core Industrial Sectors: Large-diameter water well reaming, trenchless horizontal directional drilling (HDD) crossings, heavy civil pile foundations, and mine ventilation shaft drilling.
Technical Specifications (Parameter Table)
| Technical Parameter | Specification / Standard |
| Product Designation | Cone Bit Cutter / Roller Cone Segment |
| Model | GT 537 |
| IADC Classification | Conforms to IADC 537 Series |
| Cutting Element | High-Toughness Press-Fitted Tungsten Carbide Inserts (TCI) |
| Bearing Engineering | Silver-Plated Roller Bore & Leg Hardfacing Sliding Bearing |
| Sealing System | High-Temperature Floating Nitrile Rubber Seal with Pressure-Compensated Bladder |
| Manufacturing Standard | Fully Complies with Global API Standards |
| Wear Protection | Full Gauge Protection Inserts & Leg Back Hardfacing |
Product Comparison: GT 537 TCI Cutter vs. Standard Milled Tooth Cutters
| Feature / Benefit | GT 537 TCI Cone Cutter | Milled Tooth (Steel Tooth) Cutters |
| Cutter Mechanism | Inserted Tungsten Carbide Elements | Machined & Hardfaced Steel Teeth |
| Formation Compatibility | Medium-Hard, Highly Compressive Strata | Soft, Plastic, Low-Compressive Formations |
| Bearing & Seal Life | ⭐⭐⭐⭐⭐ (Floating Seal + Compensated Bladder) | ⭐⭐⭐ (Basic non-sealed or open bearing) |
| Hole Gauge Retention | ⭐⭐⭐⭐⭐ (Full Insert + Leg Back Hardfacing) | ⭐⭐⭐ (Prone to gauge rounding) |
| Rebuilding Efficiency | High Value for Reamer Rebuilding Loops | Low cost, limited lifecycle re-welding |
Frequently Asked Questions (FAQ)
Q1: Can the Cone Bit Cutter GT 537 be welded onto third-party custom reamer bodies?
A: Yes. The GT 537 is designed strictly according to API manufacturing tolerances. The forging metallurgy is fully optimized for professional welding and mounting onto various configurations of horizontal directional drilling (HDD) reamers, trenchless hole openers, and large piling tool structures.
Q2: How does the pressure-compensated oil bladder extend the cutter’s downhole lifecycle?
A: At deep depths or during high-pressure back-reaming, hydrostatic fluid pressure can rupture standard bearing seals. Our pressure-compensated oil bladder self-adjusts internal lubricant pressure relative to outside mud pressure. This keeps the floating nitrile rubber seal perfectly balanced, preventing mud intrusion and ensuring the bearing stays fully lubricated throughout long runs.
