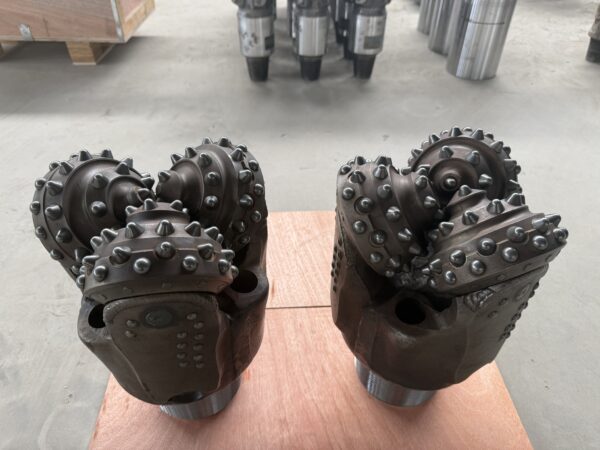

What Is a 6 1/2 Inch (165.1 mm) Tricone Drill Bit?

A 6 1/2 inch tricone bit (165.1 mm) is a heavy-duty rotary drilling tool engineered to penetrate diverse geological formations across water well, mining, geothermal, and oilfield applications. Operating with three independently rotating cones mounted on precision bearings, this tool crushes, chips, and shears rock formations under combined downhole weight and rotary action.

Core Mechanical Features

Borehole Sizing: Standard 6 1/2″ (165.1 mm) cutting diameter, ideal for pilot holes, standard casing programs, and slim-hole production.
Cutting Structures: Configured with either Tungsten Carbide Inserts (TCI) for medium-to-hard rock or precision-machined milled steel teeth for softer strata.
Balanced Roller Geometry: Three-cone synchronization ensures uniform load distribution across the bottom-hole profile to reduce vibration.
Bearing Systems: Available with sealed journal bearings, elastomer-sealed roller bearings, or air-cooled designs to maintain mechanical reliability under continuous downhole friction.

Engineered to API manufacturing standards, the 165.1 mm tricone bit provides the necessary balance of wear resistance, bit stabilization, and rate of penetration (ROP) required for demanding drilling programs.

Understanding the IADC 537G Code

When we classify a 6 1/2 inch tricone bit under the IADC standard, the 537G designation provides a direct summary of its cutting structure, bearing design, and formation capability. This standardized code eliminates guesswork when matching our bits to downhole conditions.

First Digit (5) – Cutting Structure: Represents a TCI (tungsten carbide insert) design tailored for soft-to-medium rock with low compressive strength and high drillability.
Second Digit (3) – Formation Hardness: Defines the inner row geometry and insert spacing, optimized to tackle semi-abrasive streaks without premature carbide breakage.
Third Digit (7) – Bearing System: Indicates an advanced sealed journal bearing with specialized radial seals and full gauge protection to endure high rotary speeds and sustained downhole heat.
Suffix Letter (G) – Gauge Protection: Confirms additional tungsten carbide inserts on the cone gauge rows along with reinforced hardfacing on the shirt-tail to maintain a full 165.1 mm hole diameter in abrasive strata.

Selecting an IADC 537 tricone bit ensures you deploy a balanced, wear-resistant tool engineered specifically for medium formations requiring reliable bearing life and tight hole tolerance.

Key Specifications

We manufacture our 6 1/2 inch tricone bit (165.1 mm) to deliver dependable penetration rates and extended tool life across demanding rotary drilling environments. Every component—from the cutting structure to the pin connection—is machined to meet rigorous industrial standards.

Technical Data Overview

Parameter	Specification
Nominal Diameter	6 1/2 inch (165.1 mm)
Standard Thread Connection	3 1/2″ API Regular Pin
Cutting Structure Options	TCI (Tungsten Carbide Insert) / Milled Tooth
Bearing Assembly	Sealed Journal Bearing / Elastomer Sealed Roller Bearing
Applicable IADC Range	Series 1–3 (Steel Tooth) / Series 4–8 (TCI, including IADC 537)
Gauge Protection	Tungsten carbide gauge inserts and shirt-tail hardfacing
Hydraulic Circulation	Threaded, interchangeable jet nozzles

Core Engineering Highlights

Precision Threading: Machined with an industry-standard 3 1/2″ API Regular connection for direct compatibility with standard drill strings.
Balanced Cutting Structures: Available with chiseled, conical, or spherical carbide inserts tailored to rock compressive strength.
Optimized Hydraulics: Replaceable jet nozzles enable controlled fluid velocity, keeping cones clean and preventing bottom-hole re-crushing.
Reinforced Gauge Area: Carbide compacts placed along the outer rows maintain hole diameter even in abrasive geology.

Why Choose a TCI Tricone Drill Bit?

When drilling through abrasive, medium to very hard rock formations, steel teeth wear down fast. We supply the 6 1/2 inch tricone bit with Tungsten Carbide Inserts (TCI) to handle crushing downhole stress without losing gauge or cutting structure integrity.

Choosing a TCI tricone drill bit gives your operation clear mechanical advantages:

Exceptional Wear Resistance: Tungsten carbide compacts withstand high compressive strength and severe friction, outlasting conventional steel cutting structures.
Fewer Tripping Cycles: Extended cutting life keeps your drill string in the hole longer, slashing downtime and cutting your overall cost per foot.
High Load Capacity: Engineered compact placement allows the bit to take on heavier weight-on-bit (WOB) requirements in challenging strata.

TCI vs. Milled Tooth Comparison

Performance Factor	6 1/2″ TCI Tricone Drill Bit	Standard Milled Tooth Bit
Target Formations	Medium, hard, and highly abrasive rock	Soft to medium formations
Cutting Structure	High-grade tungsten carbide inserts	Milled steel teeth
Abrasion Resistance	High wear life in abrasive strata	Moderate; prone to rapid wear in hard rock
Operational Value	Long run times, reduced trips	Cost-effective in soft ground only

For demanding rock drilling where premature tooth failure is not an option, our 165.1 mm tricone bit with carbide inserts delivers the durability and steady penetration rates you need to stay on schedule.

Sealed Bearing Technology Explained

We engineer our 6 1/2 inch tricone bit assemblies with high-performance bearing systems built to handle severe downhole heat, heavy weight on bit, and continuous rotation. The bearing package directly governs how long a bit stays in the hole, making robust sealing essential for cost-effective operations.

Bearing Reliability Highlights

Precision Elastomer Seals: Advanced elastomer seal rings act as an impenetrable barrier, keeping abrasive drilling mud, rock shavings, and downhole fluids out of the internal bearing cavity.
Pressure-Balanced Lubrication: A built-in reservoir system equalizes pressure differences between the borehole and internal components, ensuring clean lubricant constantly coats high-load contact zones.
Extended In-Hole Hours: By reducing internal friction across journals and rollers, our sealed bearing tricone bit design prevents overheating and premature cone seizure.

Utilizing a premium sealed bearing configuration ensures our 6 1/2″ rock bits deliver steady rotational stability and maximum run life in challenging formations.

Gauge Protection (G Suffix) Benefits

When you drill through abrasive rock formations, the outer diameter of your drill bit takes the hardest hit. That is why we engineer our 6 1/2 inch tricone bit with dedicated gauge protection, denoted by the G suffix in IADC classifications like IADC 537G.

This feature places high-grade tungsten carbide inserts directly along the gauge row, paired with durable hardfacing across the shirt-tail and bit lugs. It acts as an armor shield, keeping your borehole true to size from surface to target depth.

Why Gauge Protection Matters in the Field

Prevents Under-Gauge Holes: Eliminates hole tapering so subsequent bits and casing strings pass through without reaming.
Shields Critical Components: Protects the outer bearing seal area from direct rock abrasion, extending bearing life in severe drilling environments.
Reduces Reaming Time: Maintains a full 165.1 mm diameter downhole, saving costly rig hours between bit runs.
Improves Stabilization: Minimizes lateral cone vibration and erratic torque, delivering smoother rotation in abrasive and hard formations.

Feature	Standard Bit Design	G-Suffix Gauge Protection
Gauge Row Inserts	Basic compact distribution	Heavy-duty tungsten carbide inserts
Shirt-Tail Coverage	Standard steel body finish	Reinforced wear-resistant hardfacing
Borehole Caliber	Prone to diameter loss in abrasive rock	Consistently maintains true 6.5″ hole size
Downhole Application	Non-abrasive, uniform strata	Abrasive sandstones, hard limestones, and chert

Our G-suffix reinforcement guarantees your 6 1/2″ TCI tricone drill bit maintains full hole gauge, reducing premature bit pullouts and maximizing your overall footage.

Mud Circulation and Nozzle Design

Efficient downhole hydraulics keep drilling operations fast, clean, and productive. We design the fluid circulation system on our 6 1/2 inch tricone bit to deliver high-velocity jet action directly to the bottom of the hole, clearing debris before it causes premature wear.

Optimized Hydraulic Cleaning

Our 165.1 mm tricone bit design maximizes fluid dynamics to flush cuttings efficiently and protect the cutting structure:

Direct Cone Flushing: Engineered fluid streams wash across the cutting structure to prevent bit balling in softer, sticky layers and keep inserts cutting fresh rock.
Interchangeable Jet Nozzles: We supply replaceable threaded nozzles so you can quickly adjust the Total Flow Area (TFA) to match your rig’s pump pressure and mud flow rates.
Bearing and Shell Cooling: Strategic mud flow paths pull heat away from the sealed bearing assemblies and bit body during high-load rotation.
Washout Protection: Heavy-duty nozzle retention sleeves withstand high abrasive slurry speeds, preventing pocket erosion and nozzle loss during long runs.

Suitable Formations

We configure each 6 1/2 inch tricone bit to deliver dependable penetration rates across variable downhole strata. Depending on the selected cutting structure—whether milled tooth or tungsten carbide insert (TCI)—our bits efficiently tackle everything from unconsolidated ground to highly abrasive rock profiles.

Primary Lithology Types

Soft to Medium Strata: Unconsolidated sands, soft shales, marl, and gypsum formations where aggressive shearing action is required.
Medium-Hard Strata: Hard shales, dense sandstones, compact limestones, and dolomite layers requiring a balance of gouging and crushing strength.
Hard and Abrasive Formations: Quartzite, chert streaks, hard granite bands, and dense volcanic rock where insert toughness prevents micro-fracturing.

Formation Match Guide

Formation Profile	Target Lithology	Recommended Bit Style
Soft & Friable	Clays, soft shales, sandstone	Steel / Milled Tooth
Medium & Semi-Abrasive	Hard shale, chalk, firm limestones	Medium TCI (IADC 4–5 Series)
Hard & Highly Abrasive	Chert, dolomite, dense quartz	Hard TCI (IADC 6–8 Series)

Selecting the exact cutting geometry and carbide grade for your downhole conditions maximizes cutter life, protects the gauge row, and ensures stable penetration without unplanned trips.

Applications of a 6 1/2 Inch Tricone Bit

We engineer our 6 1/2 inch tricone bit to deliver reliable penetration rates across a broad spectrum of demanding rotary drilling operations. As a versatile 165.1 mm tricone bit profile, this tool balances maneuverability and cutting power, making it a staple across several global drilling sectors:

Water Well Drilling: We supply this size extensively for residential, agricultural, and industrial water well projects. Whether you are running a steel tooth configuration through softer clay top layers or deploying a TCI tricone drill bit to break through dense limestone aquifers, it maintains a true, clean bore.
Oil & Gas Exploration: Our bits excel in surface hole and intermediate casing runs. The balanced cutting structure handles transitioning formations smoothly, helping operators prevent deviation and maintain steady penetration.
Geothermal Energy Drilling: Deep geothermal wells demand exceptional thermal resistance. Equipped as a sealed bearing tricone bit, this tool handles downhole friction, elevated temperatures, and abrasive volcanic or granitic geology.
Mining and Blast Hole Operations: Open-pit mines rely on the 6.5-inch diameter for standard bench blast holes. Our bit design withstands continuous heavy loads, reducing trip times and lowering overall drilling cost per foot.
Civil Engineering and Foundation Piling: Contractors use our bits for micro-piling, bridge foundations, soil anchoring, and deep core drilling where structural stability and hole diameter accuracy are critical.

Whether mounted on a standard rotary rig or run on high-torque mud motors, our 6 1/2 inch tricone bit provides the durability and cutting efficiency needed to keep projects running on schedule.

How to Choose the Right Tricone Bit

Selecting the best 6 1/2 inch tricone bit depends on matching your target formation with the correct cutting structure and bearing design. When we configure a bit for a drilling program, we focus on four primary operational factors:

Selection Factor	Available Options	Primary Application
Cutting Structure	Steel / Milled Tooth or TCI (Tungsten Carbide Insert)	Soft formations (Milled Tooth) vs. medium to hard abrasive rock (TCI)
Bearing System	Sealed Journal Bearing or Non-Sealed / Air-Cooled Roller	Deep, high-hour drilling vs. shallow mining and construction holes
IADC Series	IADC Series 1–3 (Milled) / Series 4–8 (TCI)	Matching the bit design to rock compressive strength
Gauge Protection	Standard Compacts or Reinforced Carbide Hardfacing	Abrasive formations requiring strict hole-diameter retention

Analyze Formation Hardness: Soft shales, clays, and sands perform best with long, widely spaced milled teeth. For limestone, sandstone, granite, or basalt, choose a 6 1/2 inch TCI tricone drill bit to prevent premature tooth wear.
Select the Right Bearing: Use sealed elastomer journal bearings for water well, geothermal, and oilfield applications where long downhole hours under drilling fluid are required. Use open roller or air-bearing bits for fast, dry blast-hole mining.
Verify Rig Connection and Hydraulics: Ensure the bit connection threads match your drill string and size the interchangeable jet nozzles to match your rig’s mud pump flow rates for optimal cuttings evacuation.

FAQ

What does IADC 537G mean?

An IADC 537G classification identifies a Tungsten Carbide Insert (TCI) tricone bit designed for medium-hard formations with high compressive strength. The breakdown includes:

5: Cutting structure type (TCI bit designed for medium-hard compressive rock).
3: Formation hardness rating within the medium category, such as abrasive sandstone, limestone, and dolomite.
7: Bearing and seal arrangement (sealed journal bearing with gauge inserts).
G: Additional gauge protection along the shirt-tail and gauge row to prevent hole under-sizing.

Can the IADC code be customized?

Yes. We provide 6 1/2 inch tricone bits adapted to your geological profiles and downhole demands. Whether your project requires steel milled tooth series (IADC series 1 to 3) for softer ground or specific TCI configurations (IADC series 4 to 8) for abrasive rock, we deliver custom insert geometries, bearing packages, and hardfacing options.

What formations suit a 6 1/2 inch tricone bit?

A 6 1/2 inch (165.1 mm) bit handles a wide spectrum of strata depending on the cutting structure you choose:

Milled Tooth Bits: Best for soft to medium formations, including unconsolidated sands, clays, shales, and soft limestones.
TCI Bits: Engineered for medium-hard to extremely hard and abrasive formations, such as hard limestone, dense sandstone, quartzites, and granite.

These bits operate efficiently in water well drilling, geothermal projects, oil and gas exploration, and foundation construction.

What thread connection does this bit use?

Our standard 6 1/2 inch tricone bit comes equipped with a 3 1/2″ API Regular pin connection. This ensures direct compatibility with standard drill strings, subs, and downhole drilling motors.

Is this tricone bit API compliant?

Yes. We build our 6 1/2 inch tricone drill bits in compliance with API and ISO manufacturing standards. Every bit undergoes strict dimensional checks, thread inspections, and bearing seal tests to ensure dependable downhole performance and extended wear life on site.
