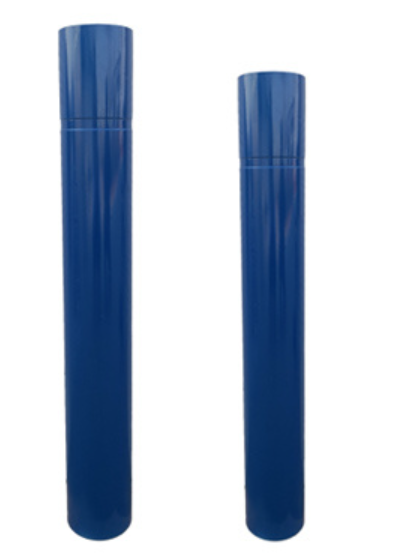

Probe Cavity
The Probe Cavity is a precision-engineered HDD component built from high-quality steel, offering low signal resistance for more accurate guidance during horizontal directional drilling. An internal shock-absorbing buffer effectively protects the probe from vibration and impact, extending its service life in demanding downhole conditions. Available in four sizes — 102mm, 120mm, 165mm, and 172mm diameters, compatible with NC31, NC38, and NC50 connections — the Probe Cavity delivers reliable performance across a range of drill string configurations. Its rugged construction and consistent signal transmission make it a trusted choice for HDD contractors seeking accuracy, durability, and dependable drag bit system compatibility.
Overview
High-quality steel body
Our probe cavity features a robust steel body engineered for maximum durability and strength in demanding drilling environments. This high-quality construction ensures reliable protection and long-term structural integrity during horizontal directional drilling (HDD) operations.
Low signal resistance
Designed specifically for optimal transmitter performance, the probe cavity minimizes signal resistance, allowing for clear and uninterrupted data transmission. This precise engineering supports accurate walkover and guidance systems by maintaining signal clarity even in challenging subsurface conditions.
Shock-absorbing buffer
Equipped with an advanced shock-absorbing buffer, the cavity protects sensitive electronic components from high-impact vibrations and harsh drilling shocks. This buffer system extends the operational lifespan of guidance tools by reducing mechanical stress and preventing premature wear.
Product Parameters
| Model | Diameter (mm) | Length (mm) | Net Weight (kg) | Connection |
|---|---|---|---|---|
| CZ-Probe-NC31 | 31 | Variable | Depends on size | NC31 |
| CZ-Probe-NC38 | 38 | Variable | Depends on size | NC38 |
| CZ-Probe-NC50 | 50 | Variable | Depends on size | NC50 |
- Diameter options fit HDD tools requiring probe cavity integration.
- Length customized based on project requirements and transmitter housing size.
- Net weight varies with dimensions to maintain balance and durability.
- Connections support standard NC31, NC38, and NC50 threading for compatibility with most HDD drill strings.
These parameters ensure reliable probe cavity fitment for directional drilling, maintaining tool stability and easy assembly.
Key Advantages
Guidance Accuracy
Our probe cavities are engineered to provide precise directional tracking essential for HDD operations. The design ensures minimal signal interference, allowing accurate transmitter reception for reliable guidance throughout the drilling process.
Vibration Protection
Built with shock-absorbing buffers and reinforced steel bodies, the probe cavity effectively reduces vibration impact. This protection safeguards sensitive electronics inside the HDD probe housing, maintaining stable performance even in tough ground conditions.
Extended Service Life
Durable materials and wear-resistant construction extend the tool’s lifespan. Combined with superior dynamic balancing and quality manufacturing, the probe cavity resists wear and damage, reducing downtime and repair costs for U.S. HDD contractors.
Applications
Walkover & Guidance Systems in HDD Drill Strings
Our probe cavities are designed specifically for use in walkover and guidance systems within HDD drill strings. They provide a secure housing for transmitters, enabling precise directional tracking essential for trenchless drilling projects. By integrating low signal resistance and shock-absorbing features, these probe cavities ensure reliable communication between the underground tool and the surface guidance equipment. This makes them indispensable for maintaining accurate borehole navigation and improving overall drilling efficiency in HDD operations.
FAQ
What is a probe cavity used for?
A probe cavity is designed to house guidance transmitters or sondes within HDD drill bits and hole openers. It provides a secure space for electronic tracking tools that help steer and monitor the drill path in trenchless directional drilling operations.
How does it improve guidance accuracy?
By precisely fitting the transmitter in a low signal resistance housing, the probe cavity ensures reliable signal transmission. This stability minimizes interference and vibration, allowing real-time, accurate tracking for optimal directional control.
Which connections (NC31/NC38/NC50) are available?
Our probe cavities support standard HDD connection sizes NC31, NC38, and NC50. This compatibility allows seamless integration with a wide range of drill string components commonly used across US HDD projects.
How is vibration damage prevented?
Shock-absorbing buffers and wear-resistant hardfacing around the probe cavity protect the transmitter from harsh impacts and vibrations. Dynamic balancing during manufacturing further reduces tool vibration, extending the life of both the tool and guidance electronics.
