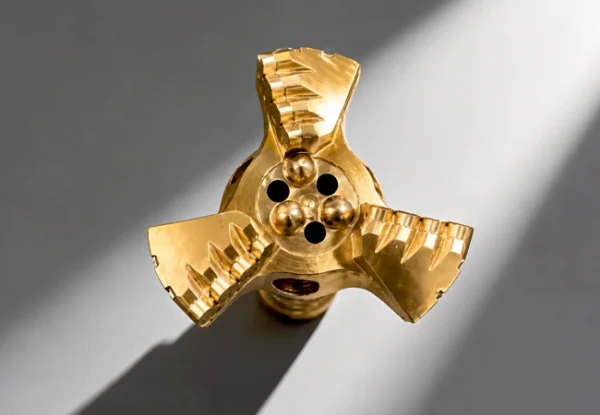

Spherical Profile PDC Drill Bit

Custom Steel Body Spherical Profile PDC Drill Bit for Stable Drilling

Product Overview & Description

The Spherical Profile PDC Drill Bit from CZDRILL is a configurable steel-body drilling tool designed for stable full-face drilling in water well, pile foundation, geological exploration, and general engineering projects. Its rounded or spherical cutting profile supports progressive formation engagement and can be tailored to the required drilling conditions.

Equipped with premium polycrystalline diamond compact cutters, the Spherical Profile PDC Drill Bit is designed to shear formation material efficiently. CZDRILL can customize the bit diameter, cutter size, cutter placement, blade quantity, water courses, nozzle arrangement, and thread connection according to the borehole size, formation information, flushing method, and drilling rig.

Key Features & Advantages

• Spherical Cutting Profile: The rounded profile supports progressive bottom-hole engagement and balanced cutting-force distribution.
• Premium PDC Cutters: PDC cutting elements provide continuous shearing action for selected drilling formations.
• Custom Steel Body: The steel-body structure allows flexible blade geometry, cutter layout, and hydraulic channel design.
• Configurable Cutting Structure: Cutter sizes and arrangements can be selected according to formation abrasiveness and drilling requirements.
• Optimized Fluid Courses: Hydraulic passages can be designed to assist with cleaning the cutting structure and removing cuttings.
• Flexible Thread Connection: The Spherical Profile PDC Drill Bit can be manufactured with a connection suitable for the customer’s drill string.

Applicable Formations & Applications

The Spherical Profile PDC Drill Bit can be configured for soft to medium-hard formations and selected interbedded drilling conditions. The suitable design should be selected after reviewing formation characteristics, drilling depth, borehole diameter, torque capacity, and flushing conditions.

• Suitable Formations: Clay, loess, silt, mudstone, shale, sandstone, weathered rock, gravel-bearing formations, and selected alternating strata.
• Water Well Drilling: Suitable for customized water well and irrigation borehole drilling projects.
• Pile Foundation Work: Used for selected pile foundation and construction drilling applications.
• Geological Exploration: Suitable for geotechnical surveys, shallow exploration, and engineering investigation holes.
• General Engineering Drilling: Can be customized for project-specific drilling tools and borehole requirements.

Technical Specifications

Technical Parameter	Specification / Option
Product Name	Spherical Profile PDC Drill Bit
Body Type	Custom Steel Body
Bit Profile	Spherical / Rounded Profile
Cutting Elements	Premium PDC Cutters
Cutter Size	Configurable according to drilling requirements
Blade Quantity	Customizable
Bit Diameter	Customizable to required borehole size
Hydraulic Design	Custom water courses and nozzle layout available
Thread Connection	Customizable to match drill pipe connection
Applications	Water wells, foundations, geological and engineering drilling

Spherical Profile PDC Drill Bit vs. Standard Drag Bit

Feature	CZDRILL Spherical Profile PDC Drill Bit	Standard Drag Bit
Cutting Elements	Premium PDC cutters	Steel wings, hardfacing, or basic cutting edges
Profile Design	Rounded, configurable spherical profile	Fixed conventional structure
Cutting Action	Continuous shearing action	Mainly scraping and crushing action
Customization	Cutters, blades, diameter, hydraulics, and connection available	Usually limited standard options
Project Matching	Can be matched to formation and rig requirements	General-purpose use only

Industry Standard Reference

CZDRILL can manufacture the thread connection and drilling-tool configuration to match the customer’s project requirements. For international drilling applications, please refer to applicable API standards and confirm the required connection before ordering.

Related Products

Explore more customized drilling tools in our PDC Drill Bits category, including steel-body PDC bits with different cutter sizes and cutting profiles.

Frequently Asked Questions

Q1: What is a spherical-profile PDC drill bit?

A: A spherical-profile PDC drill bit uses a rounded cutting shape across the borehole bottom. This profile can support progressive formation engagement and is configurable for different drilling conditions.

Q2: Can the Spherical Profile PDC Drill Bit be customized?

A: Yes. CZDRILL can customize the bit diameter, blade quantity, PDC cutter size, cutter placement, hydraulic layout, and thread connection according to your project.

Q3: Which formations can this product be used in?

A: The bit can be configured for soft to medium-hard formations, including clay, mudstone, shale, sandstone, weathered rock, and selected alternating strata. Please provide formation details before ordering.

Q4: What information is needed for a quotation?

A: Please provide the bit diameter, drilling formation, drill pipe connection, drilling rig type, flushing medium, and application. CZDRILL will recommend an appropriate configuration.

Request a Custom PDC Bit Solution

Contact CZDRILL for a customized Spherical Profile PDC Drill Bit. Send your formation details, required diameter, connection type, and drilling application for a suitable technical recommendation and quotation.
