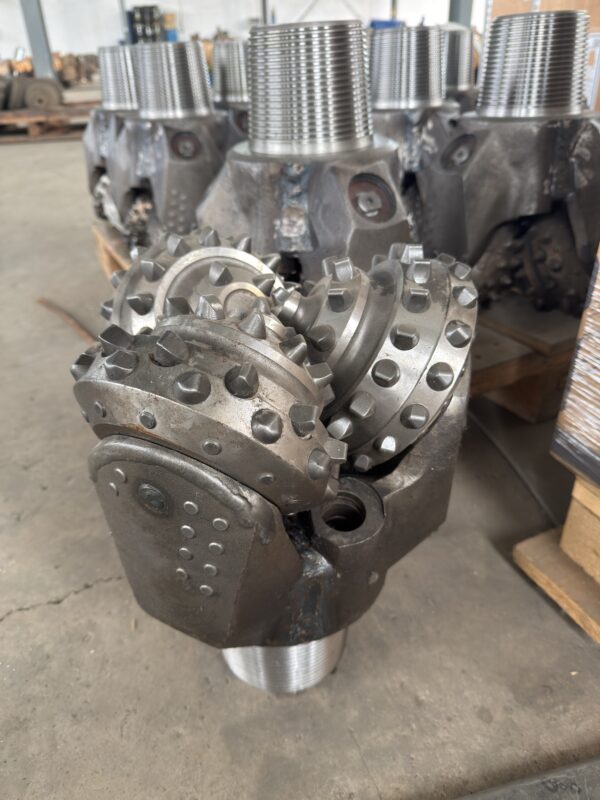

IADC 537 TCI Tricone Drill Bit

TCI Roller Cone IADC 537 Tricone Drill Bit for Medium-Hard Formation Drilling

Product Overview & Description

The IADC 537 TCI Tricone Drill Bit from CZDRILL is a roller-cone drilling tool designed for medium-hard formation applications. It uses three rotating cones equipped with tungsten carbide insert cutting elements to break formation material through a combination of rolling, crushing, and gouging actions.

The IADC 537 TCI Tricone Drill Bit is suitable for water well drilling, pile foundation work, geothermal projects, and general engineering boreholes. CZDRILL can provide suitable bit diameters, thread connections, and configurations according to customer requirements, drilling rig capacity, borehole dimensions, and anticipated geological conditions.

Key Features & Advantages

• TCI Cutting Structure: Tungsten carbide inserts provide a durable cutting structure for medium-hard formation drilling applications.
• Three-Cone Roller Design: Three rotating cones distribute drilling loads across the borehole bottom for consistent rock-breaking action.
• Medium-Hard Formation Application: IADC 537 is commonly selected for medium-hard formations and selected alternating geological layers.
• Stable Drilling Operation: The roller-cone structure supports dependable drilling performance under suitable operating parameters.
• Flexible Diameter Options: Bit diameters can be selected according to the required borehole size.
• Connection Matching: Thread connection options can be matched to the customer’s drill pipe and drilling equipment.

Applicable Formations & Applications

The IADC 537 TCI Tricone Drill Bit is intended for medium-hard formation drilling. Final bit selection should be confirmed according to formation hardness, abrasiveness, drilling depth, drilling fluid, rotary speed, and weight on bit.

• Suitable Formations: Medium-hard shale, mudstone, sandstone, limestone, weathered rock, gravel-bearing layers, and selected alternating formations.
• Water Well Drilling: Suitable for water well and irrigation borehole projects in medium-hard formations.
• Pile Foundation Drilling: Used for selected foundation, construction, and infrastructure drilling operations.
• Geothermal Drilling: Suitable for selected geothermal and ground-source drilling projects.
• Engineering Drilling: Applicable to geotechnical investigation and general engineering boreholes.

Technical Specifications

Technical Parameter	Specification / Option
Product Name	IADC 537 TCI Tricone Drill Bit
IADC Code	537
Bit Type	TCI Tricone / Roller Cone Drill Bit
Cutting Elements	Tungsten Carbide Inserts
Roller Cones	Three-Cones
Recommended Formation	Medium-Hard Formations
Bit Diameter	Available according to required borehole size
Thread Connection	Available to match drill pipe connection
Applications	Water wells, foundations, geothermal and engineering drilling

IADC 537 TCI Tricone Drill Bit vs. Standard Drag Bit

Feature	CZDRILL IADC 537 TCI Tricone Drill Bit	Standard Drag Bit
Cutting Structure	Three rotating cones with tungsten carbide inserts	Fixed steel wings or hardfaced cutting edges
Rock-Breaking Method	Rolling, crushing, and gouging action	Scraping and cutting action
Formation Range	Medium-hard formations and selected alternating layers	Mainly very soft formations
Bit Structure	Roller-cone cutting system	Fixed-blade structure
Application Flexibility	Suitable for wells, foundations, and engineering projects	Limited general-purpose use

Industry Standard Reference

The IADC code helps identify roller-cone bit characteristics and application ranges. CZDRILL can match the required bit diameter and connection to your drilling system. For relevant drilling-industry standards, please refer to API standards.

Related Products

Explore more roller-cone drilling tools in our Tricone Drill Bits category, including additional IADC codes and tricone reaming tools.

Frequently Asked Questions

Q1: What does IADC 537 mean?

A: IADC 537 is an industry code used to identify the cutting structure and general application range of a tricone drill bit. This model is commonly selected for medium-hard formation drilling applications.

Q2: What is a TCI tricone drill bit?

A: TCI means Tungsten Carbide Insert. A TCI tricone bit uses tungsten carbide inserts mounted on three rotating cones to break formation material during drilling.

Q3: Which formations are suitable for the IADC 537 bit?

A: It is suitable for medium-hard formations such as shale, mudstone, sandstone, limestone, weathered rock, gravel-bearing layers, and selected alternating strata. Final bit selection should be based on actual formation information.

Q4: What information is needed for a quotation?

A: Please provide the required bit diameter, formation details, drill pipe connection, drilling rig type, drilling depth, and application. CZDRILL will recommend a suitable tricone bit configuration.

Request a Tricone Bit Quotation

Contact CZDRILL for an IADC 537 TCI Tricone Drill Bit quotation. Send your required diameter, formation details, connection type, and drilling application to receive a suitable product recommendation.
