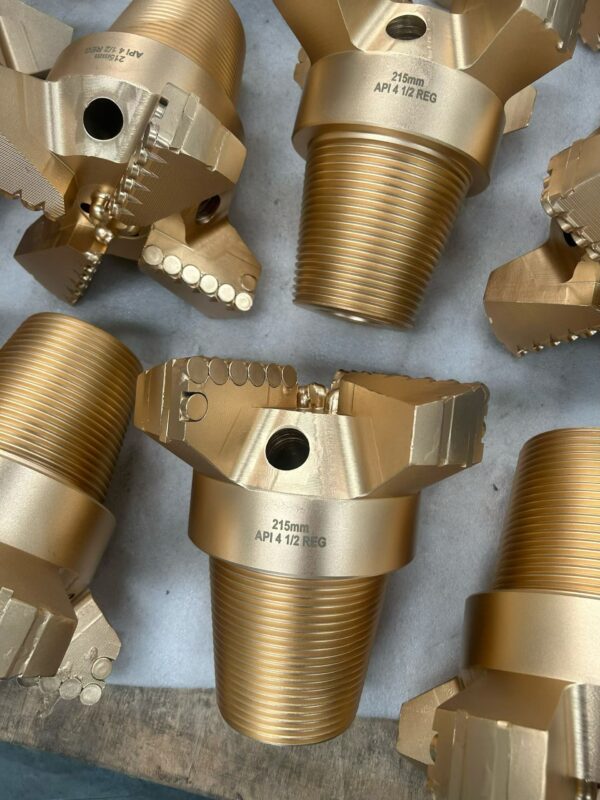

3-Blade Fixed Plate PDC Reamer

High-Strength Steel 3-Blade Fixed Plate PDC Reamer for Hole Enlargement

Product Overview & Description

The 3-Blade Fixed Plate PDC Reamer from CZDRILL is a hole enlargement tool designed for reaming pilot holes to the required final borehole diameter. It is suitable for horizontal directional drilling (HDD), water well drilling, foundation drilling, and selected engineering drilling applications.

Built with a high-strength steel body, fixed plate cutting structure, and premium PDC cutting elements, the 3-Blade Fixed Plate PDC Reamer provides a balanced three-blade reaming layout. The reamer diameter, cutting plates, PDC cutter arrangement, pilot connection, and rear connection can be customized according to the target hole size, formation information, drilling method, and customer requirements.

Key Features & Advantages

• Three Fixed Cutting Plates: The three-blade fixed plate layout provides a balanced cutting structure for pilot-hole enlargement.
• High-Strength Steel Body: The steel body provides a durable platform for the fixed plates and PDC cutting elements.
• Premium PDC Cutters: PDC cutting elements provide continuous shearing action in suitable drilling formations.
• Fixed Plate Structure: The cutting plates can be arranged according to the reaming diameter and formation requirements.
• Custom Diameter Options: Reamer diameter can be produced according to the required final borehole size.
• Flexible Connection Options: Pilot and back connections can be matched to the customer’s drill string and rig system.

Applicable Formations & Applications

The 3-Blade Fixed Plate PDC Reamer can be configured for selected soft to medium-hard formations. Final reamer selection should be based on pilot-hole diameter, target hole diameter, formation hardness, abrasiveness, drilling fluid, pullback force, torque capacity, and drilling method.

• Suitable Formations: Clay, loess, silt, mudstone, shale, soft to medium sandstone, weathered rock, and selected alternating strata.
• Horizontal Directional Drilling: Used for pilot-hole enlargement in HDD pipeline and utility installation projects.
• Water Well Drilling: Suitable for selected water well borehole enlargement applications.
• Foundation Drilling: Used for selected pile foundation and construction drilling projects.
• Engineering Drilling: Applicable to borehole enlargement for general engineering and geotechnical work.

Technical Specifications

Technical Parameter	Specification / Option
Product Name	3-Blade Fixed Plate PDC Reamer
Product Type	Fixed Plate PDC Hole Reamer
Body Material	High-Strength Steel Body
Blade Quantity	3 Fixed Cutting Plates
Cutting Elements	Premium PDC Cutters
Reaming Function	Pilot Hole Enlargement
Reamer Diameter	Customizable according to required final hole size
Connection Type	Pilot and back connections configurable
Applications	HDD, water wells, foundations, and engineering drilling

3-Blade Fixed Plate PDC Reamer vs. Spiral PDC Reamer

Feature	CZDRILL 3-Blade Fixed Plate PDC Reamer	Spiral PDC Reamer
Blade Structure	Fixed plate cutting structure	Spiral blade cutting structure
Cutting Layout	Configured fixed plates with PDC cutters	Configured spiral blades with PDC cutters
Reaming Application	Pilot-hole enlargement in selected formations	Pilot-hole enlargement in selected formations
Diameter Options	Customizable	Customizable
Connection Options	Pilot and back connections configurable	Pilot and back connections configurable

Industry Standard Reference

CZDRILL can match the reamer connection to your drill string and HDD or drilling system. For relevant drilling-industry connection requirements, please refer to applicable API standards before ordering.

Related Products

Explore more borehole enlargement tools in our PDC Hole Reamers category, including spiral blade and pilot-guided PDC reamers.

Frequently Asked Questions

Q1: What is a 3-blade fixed plate PDC reamer?

A: A 3-blade fixed plate PDC reamer is a hole enlargement tool used after a pilot hole has been drilled. It uses three fixed cutting plates with PDC cutters to enlarge the borehole to the required final diameter.

Q2: What is the difference between a fixed plate reamer and a spiral reamer?

A: A fixed plate reamer uses fixed cutting plates, while a spiral reamer uses spiral cutting blades. Both can be configured for borehole enlargement, and the suitable option depends on the formation and drilling application.

Q3: Can the reamer diameter and connection be customized?

A: Yes. CZDRILL can customize the reamer diameter, pilot connection, rear connection, cutter layout, and fixed plate configuration according to your drilling project.

Q4: What information is needed for a quotation?

A: Please provide the pilot-hole diameter, target hole diameter, formation details, drilling rig type, connection requirements, and application. CZDRILL will recommend a suitable reamer configuration.

Request a PDC Reamer Quotation

Contact CZDRILL for a 3-Blade Fixed Plate PDC Reamer quotation. Send your pilot-hole size, target diameter, formation details, connection type, and drilling application for a suitable technical recommendation.
