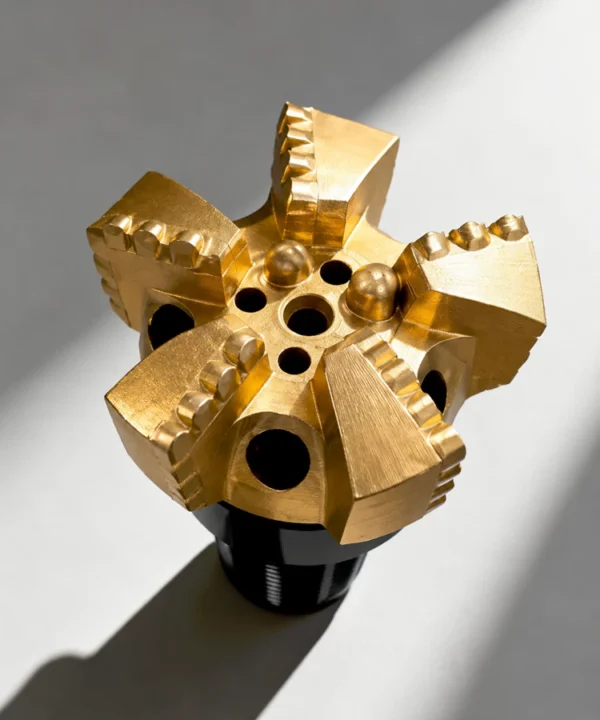

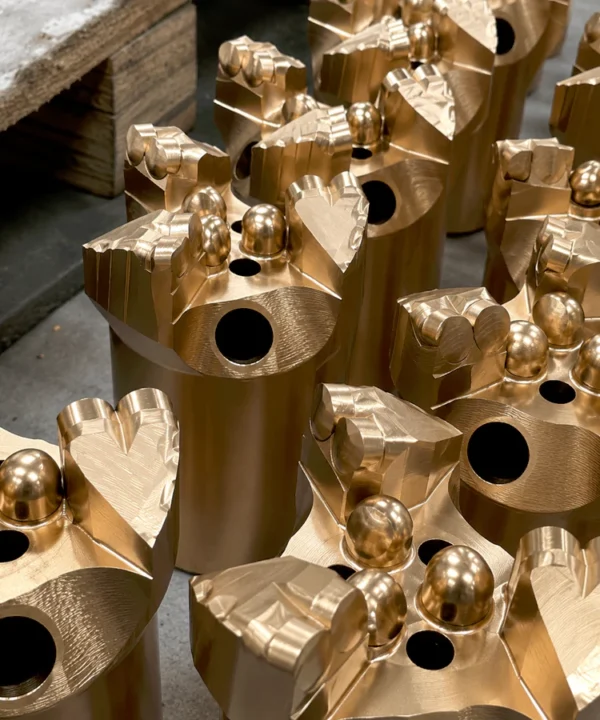

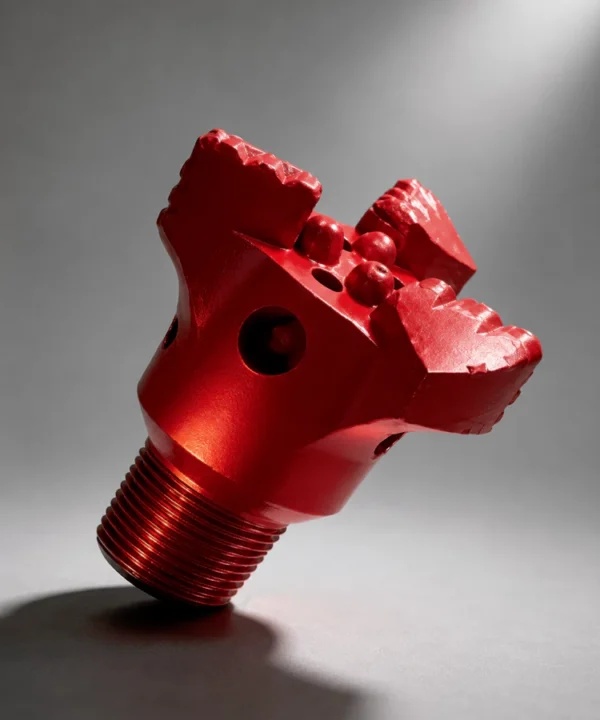

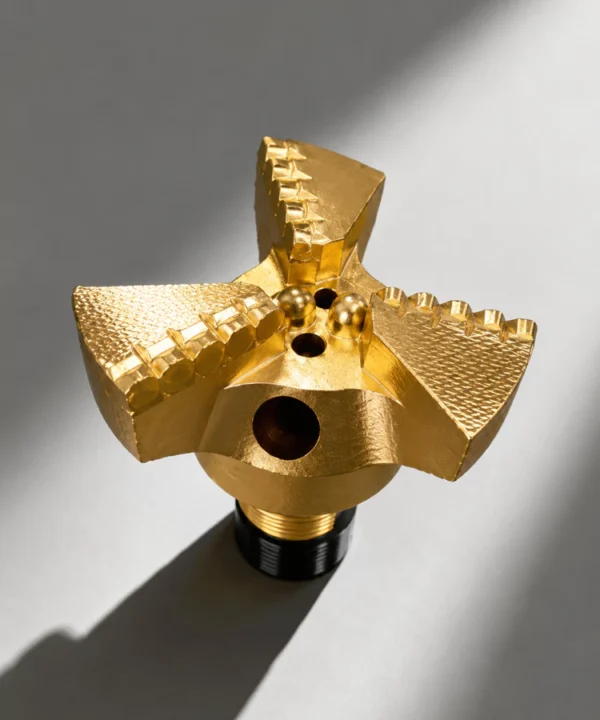

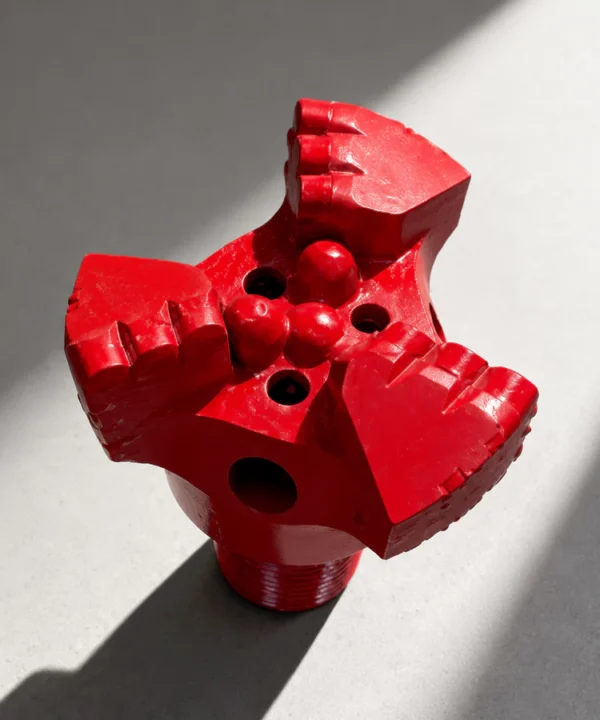

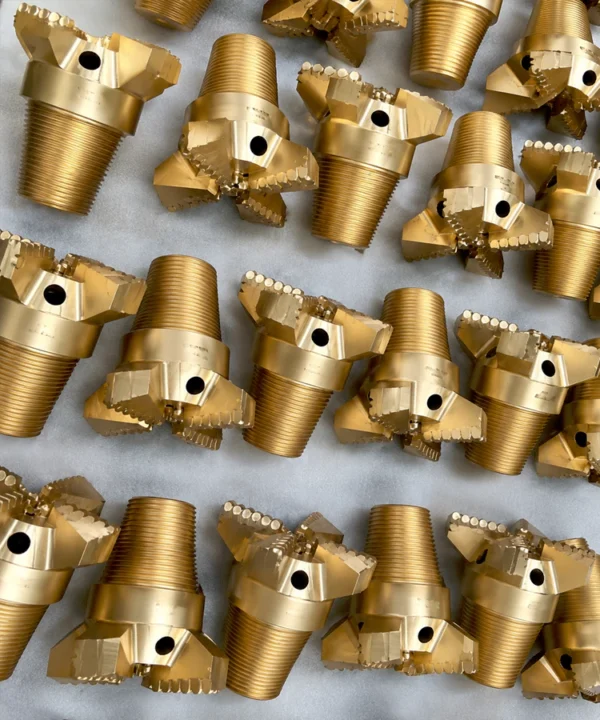

Three-Wing Non-Core Bit

High-ROP One-Piece Forged Alloy Steel Three-Wing PDC Non-Core Drill Bit

Product Overview & Description

The Three-Wing Non-Core Bit (available in three, four, or multi-wing configurations) is a premium, high-efficiency drilling solution engineered by CZDRILL for full-face rock breaking without coring. Machined from a rugged, one-piece forged alloy steel body and embedded with advanced PDC cutters, this universal bit delivers exceptional mechanical stability and aggressive shearing performance.

Featuring a lightweight structure designed to maximize the Rate of Penetration (ROP), it offers stable starting performance and a low risk of drilling vibration. To ensure seamless deployment on international project sites, all models are manufactured with precise thread geometry and are fully compatible with standard REG, IF, and NC drill pipe connections.

Features & Outstanding Advantages

• One-Piece Forged Alloy Steel Body: Forged as a single structural unit to offer outstanding fatigue resistance and high structural integrity under extreme torsional loads.

• High-Performance PDC Cutter Matrix: Strategically embedded with premium PDC cutters that maintain sharp cutting profiles, delivering fast, continuous shearing rather than energy-intensive crushing.

• Lightweight, High-ROP Profile: The streamlined wing design provides optimal hydraulic clearance, allowing rapid cutting evacuation and preventing bit balling in sticky strata.

• Universal API Thread Compatibility: Fully engineered to fit global drilling operations with standard REG, IF, and NC drill pipe thread connections.

• Stable Starting & Low Vibration: Engineered with balanced cutting forces to ensure a smooth, stable start whenever the bit encounters new formation contacts.

Applicable Formations & Application Scope

Our multi-wing non-core bits are universally optimized for soft to medium-hard geological formations and highly complex, layered soils:

• Target Geological Strata: Clay, loess, silt, mudstone, shale, coal seams, weathered sandstone, weathered limestone, and challenging alternating soft-hard strata.

• Core Engineering Applications: Geologic and mineral exploration, water well drilling, anchor grouting holes, and general shallow engineering drilling projects.

Technical Specifications (Parameter Table)

Technical Parameter	Specification / Standard
Product Category	Three/Four/Multi-Wing Non-Core Bit
Drilling Profile	Full-Face Rock Breaking (Non-Coring / Destructive Drilling)
Body Manufacturing	One-Piece Forged Alloy Steel Body
Cutting Elements	Embedded Premium PDC Cutters
Thread Interface Type	API Standard REG, IF, and NC Thread Options
Operational Strengths	High ROP, Lightweight Structure, Stable Starting Performance
Formation Capacity	Soft to Medium-Hard, Layered, and Alternating Soft-Hard Strata

Product Comparison: Three-Wing PDC vs. Standard Clay Drag Bits

Feature / Benefit	CZDRILL Three-Wing PDC Bit	Standard Steel Clay Drag Bits
Cutter Technology	Embedded Industrial PDC Cutters	Basic Forged Steel Wings / Standard Hardfacing
Body Manufacturing	Premium One-Piece Forged Alloy Steel	Welded Mild Steel / Fabricated Plates
Rate of Penetration (ROP)	⭐⭐⭐⭐⭐ (Aggressive, continuous shearing)	⭐⭐⭐ (Rapidly dulls in abrasive sand/shale)
Alternating Strata Capability	⭐⭐⭐⭐⭐ (Excels in soft-hard interbeds)	⭐⭐ (Prone to impact damage or stalling)
Overall Tool Lifespan	Significantly longer run hours per bit	Low cost, short functional service life

Frequently Asked Questions (FAQ)

Q1: When should I choose a Three-Wing vs. a Four-Wing or Multi-Wing non-core bit?

A: Three-wing bits feature larger fluid ways and wider cutting clearances, making them ideal for softer, stickier strata like clay, loess, and silt where rapid cutting removal is vital to prevent bit balling. Four-wing and multi-wing configurations offer more cutter density and stability, making them preferred for tougher, alternating soft-hard strata, weathered sandstone, and shallow exploration holes where gauge control is critical.

Q2: Are these bits compatible with standard geotechnical and water well rigs?

A: Yes, absolutely. We manufacture these bits to be universally compatible with the most widely used industrial standards, including REG (Regular), IF (Internal Flush), and NC (Numbered Connection) drill pipe threads. This allows you to connect them directly to your existing drill string without specialized or custom sub-adapters.
