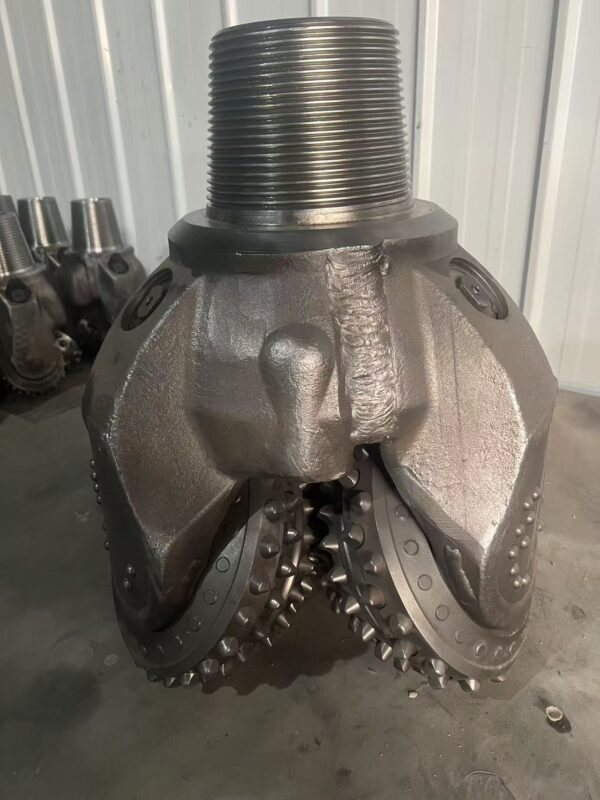

IADC 617 TCI Tricone Drill Bit
The CZDRILL IADC 617 TCI Tricone Drill Bit is a heavy-duty roller-cone drilling tool designed for hard formation applications in water well, pile foundation, geothermal, and engineering projects. Built with tungsten carbide insert cutting elements and three rotating cones, it provides dependable rock-breaking action in demanding drilling conditions. Bit diameter, thread connection, bearing structure, and cutting configuration can be selected according to borehole size, formation conditions, and rig requirements.
IADC 617 TCI Tricone Drill Bit
Heavy-Duty TCI Roller Cone IADC 617 Tricone Drill Bit for Hard Formations
Product Overview & Description
The IADC 617 TCI Tricone Drill Bit from CZDRILL is a roller-cone drilling tool designed for hard formation applications. It features three rotating cones equipped with tungsten carbide insert cutting elements, which break formation material through rolling, crushing, and gouging actions.
The IADC 617 TCI Tricone Drill Bit is suitable for water well drilling, pile foundation work, geothermal projects, and general engineering boreholes where harder geological layers are encountered. CZDRILL can provide suitable bit diameters, thread connections, and configurations according to customer requirements, drilling rig capacity, borehole dimensions, and expected formation conditions.
Key Features & Advantages
- Heavy-Duty TCI Cutting Structure: Tungsten carbide inserts provide a durable cutting structure for hard formation drilling applications.
- Three-Cone Roller Design: Three rotating cones distribute drilling loads across the borehole bottom for reliable rock-breaking action.
- Hard Formation Application: IADC 617 is commonly selected for hard formations and selected abrasive geological layers.
- Stable Drilling Performance: The roller-cone structure supports dependable operation under suitable drilling parameters.
- Flexible Diameter Options: Bit diameters can be selected according to the required borehole size.
- Connection Matching: Thread connection options can be matched to the customer’s drill pipe and drilling equipment.
Applicable Formations & Applications
The IADC 617 TCI Tricone Drill Bit is intended for hard formation drilling. Final bit selection should be confirmed according to formation hardness, abrasiveness, drilling depth, drilling fluid, rotary speed, and weight on bit.
- Suitable Formations: Hard shale, hard sandstone, limestone, compacted gravel, weathered rock, hard interbeds, and selected abrasive formations.
- Water Well Drilling: Suitable for water well and irrigation borehole projects that encounter harder geological layers.
- Pile Foundation Drilling: Used for selected foundation, construction, and infrastructure drilling operations.
- Geothermal Drilling: Suitable for selected geothermal and ground-source drilling projects.
- Engineering Drilling: Applicable to geotechnical investigation and general engineering boreholes in hard formations.
Technical Specifications
| Technical Parameter | Specification / Option |
| Product Name | IADC 617 TCI Tricone Drill Bit |
| IADC Code | 617 |
| Bit Type | TCI Tricone / Roller Cone Drill Bit |
| Cutting Elements | Tungsten Carbide Inserts |
| Roller Cones | Three-Cones |
| Recommended Formation | Hard Formations |
| Bit Diameter | Available according to required borehole size |
| Thread Connection | Available to match drill pipe connection |
| Applications | Water wells, foundations, geothermal and engineering drilling |
IADC 617 TCI Tricone Drill Bit vs. Standard Drag Bit
| Feature | CZDRILL IADC 617 TCI Tricone Drill Bit | Standard Drag Bit |
| Cutting Structure | Three rotating cones with tungsten carbide inserts | Fixed steel wings or hardfaced cutting edges |
| Rock-Breaking Method | Rolling, crushing, and gouging action | Scraping and cutting action |
| Formation Range | Hard formations and selected abrasive layers | Mainly very soft formations |
| Bit Structure | Heavy-duty roller-cone cutting system | Fixed-blade structure |
| Application Flexibility | Suitable for wells, foundations, and engineering projects | Limited general-purpose use |
Industry Standard Reference
The IADC code helps identify roller-cone bit characteristics and application ranges. CZDRILL can match the required bit diameter and connection to your drilling system. For relevant drilling-industry standards, please refer to API standards.
Related Products
Explore more roller-cone drilling tools in our Tricone Drill Bits category, including additional IADC codes and tricone reaming tools.
Frequently Asked Questions
Q1: What does IADC 617 mean?
A: IADC 617 is an industry code used to identify the cutting structure and general application range of a tricone drill bit. This model is commonly selected for hard formation drilling applications.
Q2: What is a TCI tricone drill bit?
A: TCI means Tungsten Carbide Insert. A TCI tricone bit uses tungsten carbide inserts mounted on three rotating cones to break formation material during drilling.
Q3: Which formations are suitable for the IADC 617 bit?
A: It is suitable for hard formations such as hard shale, hard sandstone, limestone, compacted gravel, weathered rock, and selected abrasive layers. Final bit selection should be based on actual formation information.
Q4: What information is needed for a quotation?
A: Please provide the required bit diameter, formation details, drill pipe connection, drilling rig type, drilling depth, and application. CZDRILL will recommend a suitable tricone bit configuration.
Request a Tricone Bit Quotation
Contact CZDRILL for an IADC 617 TCI Tricone Drill Bit quotation. Send your required diameter, formation details, connection type, and drilling application to receive a suitable product recommendation.
